Angry IP Scanner Setup

1. Go to https://angryip.org/download/


1. For windows, select 32/64bit installer

2. For Mac, select Zipped Application Bundle


2. Install application.


1. If you get a message stating Java is not installed:


1. https://adoptopenjdk.net/?variant=openjdk15&jvmVariant=openj9

2. https://java.com/en/


3. Open Angry ip Scanner

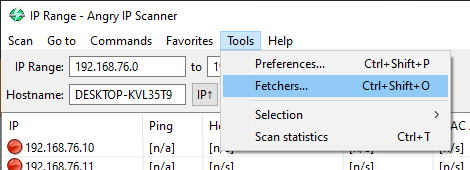

1. Go to tools

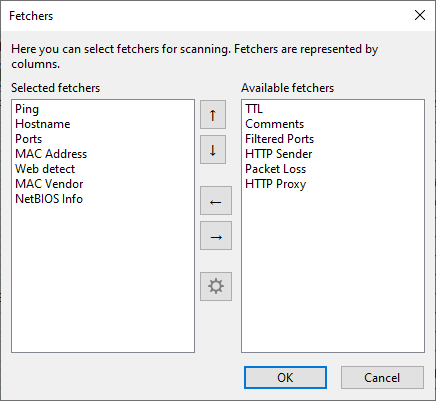

2. Select fetchers:


3. Match the image above

4. Click ok

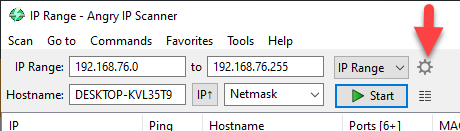

5. Next, select the gear icon shown below:

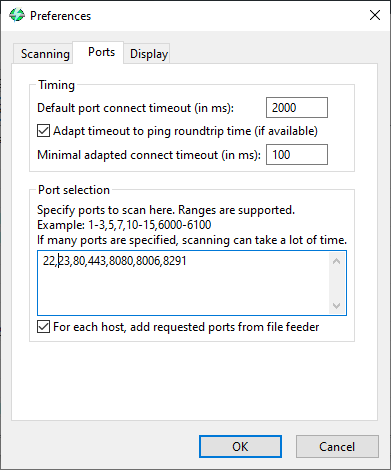

6. Then click ports and add the ports shown below:




7. Click OK.

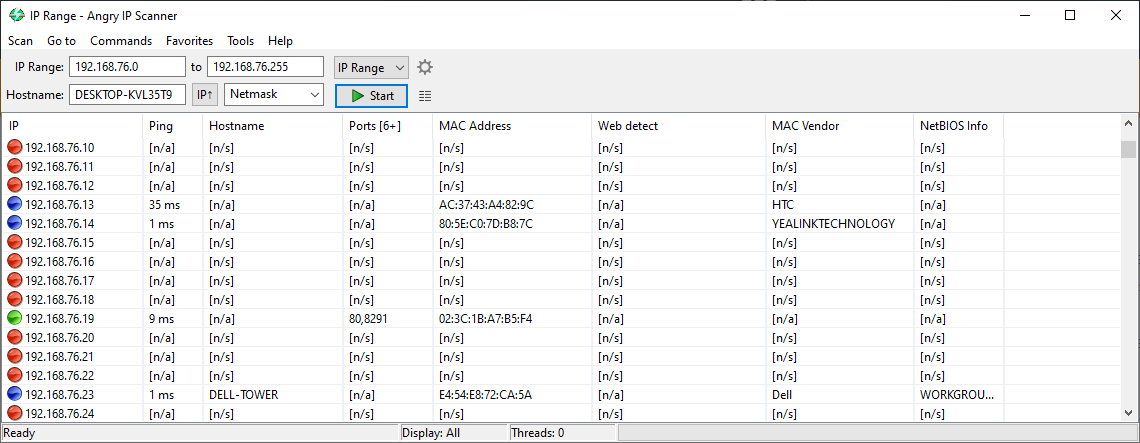

8. Angry IP Scanner should auto load with your IP range. Hit the start button, and your results should be similar to this example below:


9. After you get results  Click Scan then Export all

10. Save the text File and email to it@percfab.com
